Presentation of Resistance Weld (Precision Spot Weld) Experiment and Technique

We are striving to pursue to improve the quality of resistance welding which requires ongoing miniaturization and refinement.
Through our challenge, we promise to offer the best weld solution.

Samples made by using Resistance Weld Power Supply "PW-30D"

Capacitor Ta Wire - Cu alloy Frame	Capacitor Ta Wire - 42 Alloy Spacer	Capacitor Ta Wire - Leadframe Edge
Capacitor stacked chemically coated Al foil	Capacitor stacked chemically coated Al foil	Electrode Ni - Ni Alloy bumped weld
Cement Resistor Cap(Fe) - Lead(Cu)	Crystal Oscillator SMD Type Support Frame (Parallel Gap 0.2mm)	Crystal Oscillator Support Frame
Electrical Wire Electrical wire and CP wire	Electrical Wire Electrical wire and CP wire

Samples made by using Arc Weld Power Supply "PW-05Arc"

CP wire and CP wire(φ0.8)

Cupper wire and CP wire

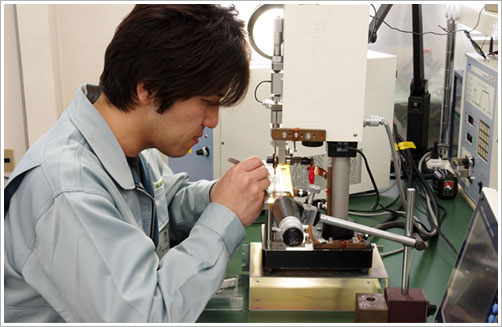

Weld Experiment / Weld Sample Making

• Want to have general idea of resistance weld (spot weld).
• Want to test the resistance weld with existing material and shape.
• Want to improve current production process utilizing welding, etc……

Feel free to contact us.
Not only do we receive the questions regards to welding, we also accept to study the weld conditions and the weld sample making. (mainly with spot weld for small sample material)
Also, not just for the new subject, we also work on to solve the problems you might have on current production through the experiment.
